Jinan Voton Machinery Equipment Co., Ltd
Model No.: Voton
Transportation: Ocean
Port: Qingdao Port
Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
| Fdx700-1: 4 technical parameters | |
| Maximum power p | 700kW |
| Input torque T | 3100Nm |
| Single pump power p | 340kW |
| Maximum torque of single pump T | 1800Nm |
| Maximum input speed n | 2300rpm |
| Maximum output speed n | 2700rpm |
| Shell material | cast iron |
| Slow down | 0.673 | 0.740 | 0.813 | 0.891 | 0.977 |
| Growth rate | 1.486 | 1.351 | 1.230 | 1.122 | 1.024 |

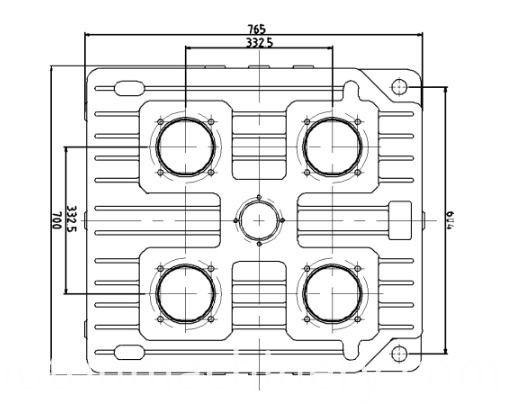

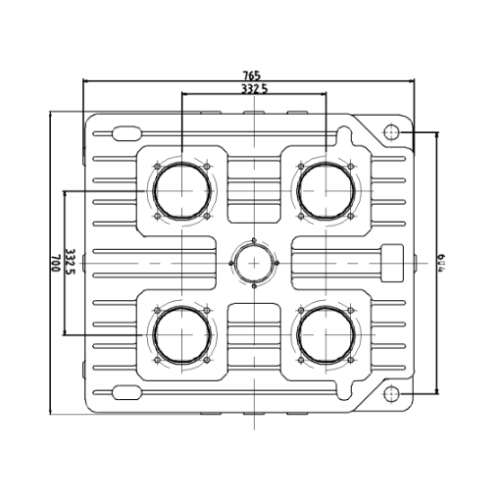

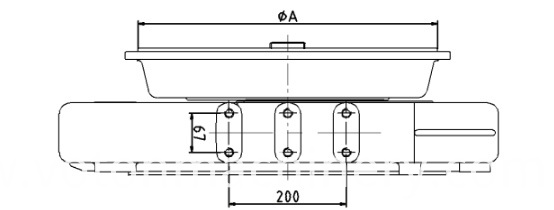

Dimension a can be machined according to different engine flywheel housing dimensions.
In general, the sizeof a is SAE1# -511. 18,SAE2# - 447.68,SAE3# - 409.58

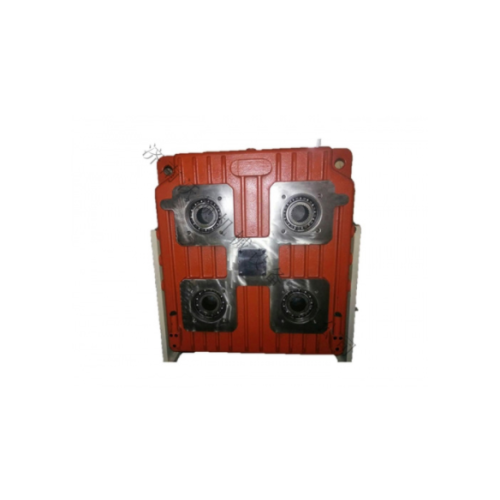

Product Categories : Transfer Case Series
Q1:Could you custom products?
We can manufacture it according to your drawings or samples.
Q2: I want to buy your products, how can I pay?
A :You can pay via T/T , WEST UNION or other payment terms we reach agreement.
Q3: How can you guarantee the quality?
A: One year's warranty against B/L date.
If You meet with quality problem, we promise to responsible for it.
Q4: If we don't find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q5: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
Q6: What is the lead time?
A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
Exact time is determined by factory schedule.
