HomeProductsReducer SeriesBonfiglioli brand reducer series

Bonfiglioli brand reducer series

Payment Type:
Min. Order:
Qingdao Port
  • Product Description
Product Attributes

Model No.Bonfiglioli

Supply Ability & Additional Informations


PortQingdao Port

Payment TypeL/C,T/T

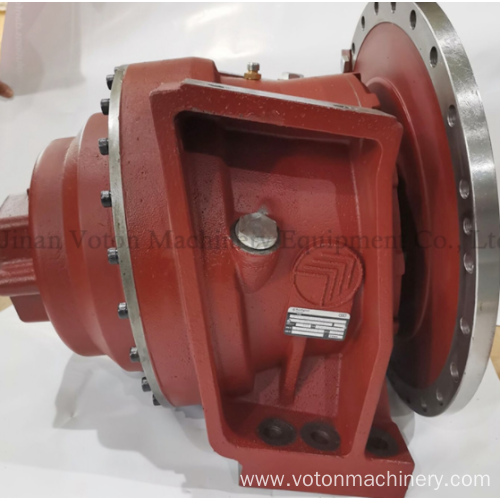

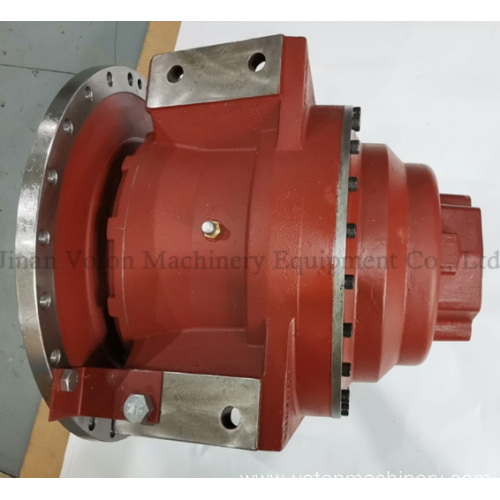

High quality Bonfiglioli Reducer

Requires trouble-free operation, quality will be the highest priority

High reliability, low maintenance, compact design and reasonable price are the characteristics of the new generation of 500 series reducers, and they are the ultimate choice for mixer truck drive. 8 models and matching range are used for 1-12 cubic meters of mixing conveyor.

Torque range: 3,000…75,000Nm

Mixing conveyor specifications: 1-12m3

Speed ratio: 17---161

Main features:

1. Flange rotation output

2. High-strength design

3. High torque

4. Large carrying capacity

5. Inclined output flange, 360° adjustment range

6. Comes with water tank base

7. Optional pump power port P.T.0

8. Optional speed sensor interface

9. Supporting motor

10. Axial piston motor SAE standard, cycloid motorThe Bonfiglioli Reducer


Model 575L 577L 580L
Max Rated Torque Nm 50000 60000 75000
Rations 1: 101 131 130-147
Max Output Speed rpm 20 20 20
Drum Capacity *m³ 6-8 8-10 10-12
Weight kg 250 290 320
0il Quantily L 7 8.5 10
Oil Type SAVE 85w/140 with EP properties, as per API G15 standard
Water Pump PTO Optional
Pick-up Speed Sensing Optional
Hydraulic Motor Mounting Pattem To SAE standard J744C -SAE C 16/32- -21T-23T

Product Categories : Reducer Series

Company Overview
Jinan Voton Machinery Equipment Co., Ltd. mainly deals in the following products: 1. Hydraulic products: Eaton, Danfoss, Linde all series of hydraulic products. HydraForce threaded cartridge valve, Nimco multi-way valve in Sweden. Main business: hydraulic pumps, hydraulic motors 2. Transfer case products: According to market demand, we develop and produce "Wharton" brand transfer case by ourselves. The meticulous design, precise processing and fine assembly ensure the excellent quality of the transfer case and have been recognized by the user. Jinan Voton is willing to establish long-term cooperative relations with enterprises with strong strength, reasonable prices and excellent service. Product Application Field Ship-involving drop gear, warehouse cover, crane, hydraulic steering gear, valve remote control and other systems. Construction machinery-involving road rollers, pavers, milling machines, graders, road mixers, spreaders, skid steer loaders, busy at both ends, cranes, crawler cranes, aerial work vehicles, flatbed trucks, cement mixer trucks , Concrete pump trucks, bulldozers, railway locomotives, oilfield logging / cementing / workover / sand mixing equipment, airport vehicles, port equipment, coal mining machinery, trenchless drilling rigs, rotary drilling rigs, anchoring and prospecting machinery, forklifts, Hydraulic systems such as rice harvesters and large and medium horsepower tractors. Agricultural machinery-cotton picking machine, green storage machine, high ground clearance spraying machine, etc. Metallurgy, cement, thermal power, aviation and other industries are also developing in the market.
Company Photos
Production Certification

Q1:Could you custom products?

We can manufacture it according to your drawings or samples.

Q2: I want to buy your products, how can I pay?

A :You can pay via T/T , WEST UNION or other payment terms we reach agreement.

Q3: How can you guarantee the quality?

A: One year's warranty against B/L date.

If You meet with quality problem, we promise to responsible for it.

Q4: If we don't find what we want on your website, what should we do?

A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.

Q5: Can we buy 1 pc of each item for quality testing?

A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.

Q6: What is the lead time?

A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.

Exact time is determined by factory schedule.
