The Rexroth Hydraulic Pumps

Payment Type:
L/C,T/T
Incoterm:
FOB,CIF,EXW
Min. Order:
1
Transportation:
Ocean
Port:
Qingdao Port
Share:
  • Product Description
Overview
Product Attributes

Model No.Rexroth

Supply Ability & Additional Information

TransportationOcean

PortQingdao Port

Payment TypeL/C,T/T

IncotermFOB,CIF,EXW

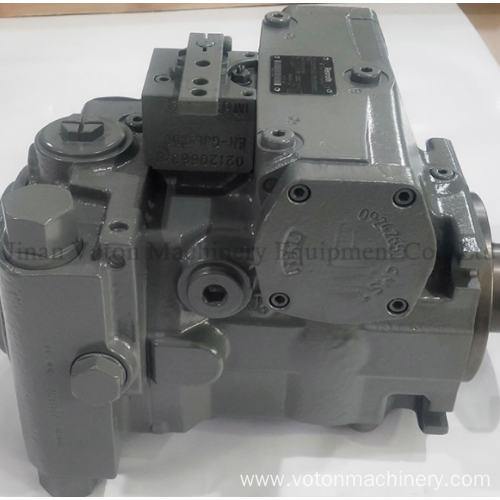

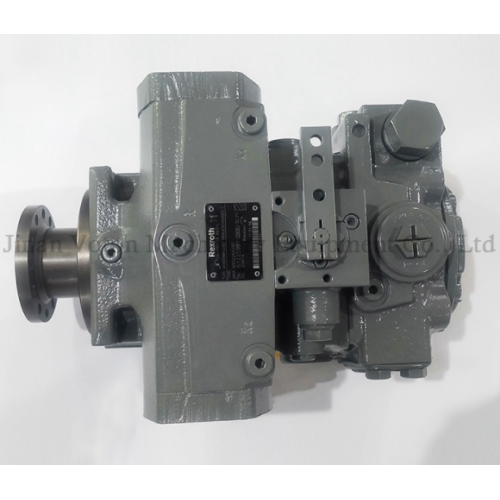

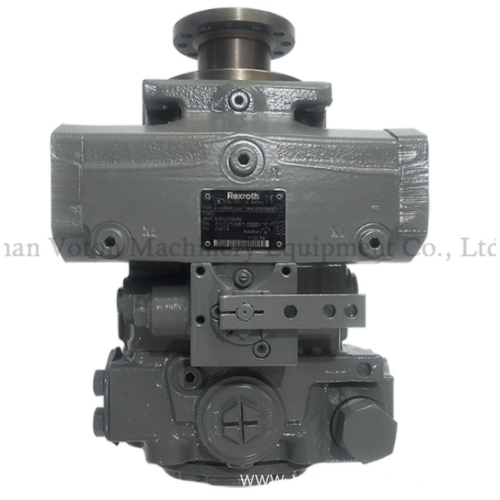

The Rexroth Hydraulic Pumps


Product Details

Series 33

Sizes NG71, 90

Nominal pressure 400 bar

Peak pressure 450 bar

Closed circuit

For the drum drive in mobile concrete mixers

Features

- Variable axial piston pump of swashplate design for hydro-static closed circuit transmission

- Flow is proportional to drive speed and displacement and is infinitely variable

- Flow increases with the swivel angle of the swashplate from 0 to its maximum value

- Flow direction changes smoothly when the swashplate ismoved through the neutral position

- Two pressure-relief valves are provided on the high pressure ports to protect the hydrostatic transmission (pump and motor) from overload

- The high-pressure relief valves also function as boost valves

- The integrated boost pump acts to replenish leakage and provide control oil.

- The maximum boost pressure is limited by a built-in boost-pressure-relief valve

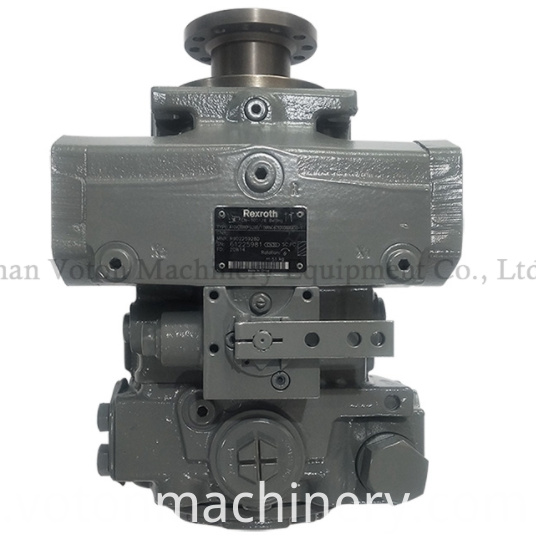

The Rexroth Pumps

Product Categories : Hydraulic Pump Series

Company Overview
Jinan Voton Machinery Equipment Co., Ltd. mainly deals in the following products: 1. Hydraulic products: Eaton, Danfoss, Linde all series of hydraulic products. HydraForce threaded cartridge valve, Nimco multi-way valve in Sweden. Main business: hydraulic pumps, hydraulic motors 2. Transfer case products: According to market demand, we develop and produce "Wharton" brand transfer case by ourselves. The meticulous design, precise processing and fine assembly ensure the excellent quality of the transfer case and have been recognized by the user. Jinan Voton is willing to establish long-term cooperative relations with enterprises with strong strength, reasonable prices and excellent service. Product Application Field Ship-involving drop gear, warehouse cover, crane, hydraulic steering gear, valve remote control and other systems. Construction machinery-involving road rollers, pavers, milling machines, graders, road mixers, spreaders, skid steer loaders, busy at both ends, cranes, crawler cranes, aerial work vehicles, flatbed trucks, cement mixer trucks , Concrete pump trucks, bulldozers, railway locomotives, oilfield logging / cementing / workover / sand mixing equipment, airport vehicles, port equipment, coal mining machinery, trenchless drilling rigs, rotary drilling rigs, anchoring and prospecting machinery, forklifts, Hydraulic systems such as rice harvesters and large and medium horsepower tractors. Agricultural machinery-cotton picking machine, green storage machine, high ground clearance spraying machine, etc. Metallurgy, cement, thermal power, aviation and other industries are also developing in the market.
Company Photos
Production Certification
FAQ:

Q1:Could you custom products?

We can manufacture it according to your drawings or samples.

Q2: I want to buy your products, how can I pay?

A :You can pay via T/T , WEST UNION or other payment terms we reach agreement.

Q3: How can you guarantee the quality?

A: One year's warranty against B/L date.

If You meet with quality problem, we promise to responsible for it.

Q4: If we don't find what we want on your website, what should we do?

A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.

Q5: Can we buy 1 pc of each item for quality testing?

A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.

Q6: What is the lead time?

A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.

Exact time is determined by factory schedule.
