Model No.: Eaton
Transportation: Ocean
Port: Qingdao Port
Model | Displacement cm3/r [ in3/rev] | Flow lpm [gpm] | Rotating speed rpm High/Low | preset pressure bar [psi] | Peak pressure bar [psi] | Charge Pressure bar [psi] | Torque nm lbf-in] |
46 | 75,3 [4.6] @18o | 332 [85] | 4160/ 50 | 240 [3500]d | 415 [6000] | 11 [160] | 556 [4916] |
54 | 89,1 [5.44] @18o | 337 [89] | 3720/ 50 | 240bar [3500] | 415bar [6000] | 11 [160] | 556 [4916] |
64 | 105,5 [6.44] @18o | 409 [108] | 3720/50 | 240 [3500] | 415 [6000] | 11 [160] | 656 [5807] |

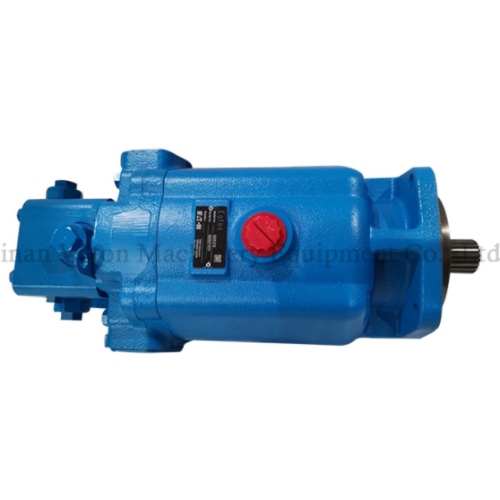

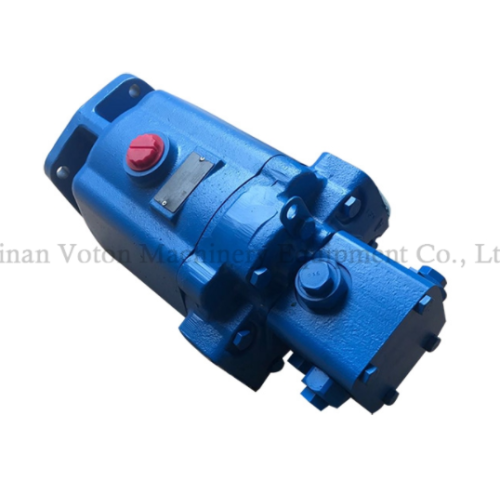

Product description: 5433-138 (mainly used in 8-10M3 concrete mixer truck)
Model description:
HHD Product Series-Hydrostatic Transmission-Heavy-Duty Fixed Motor
54 Displacement 89.13cm3/r[5.439in3/r] (18 degree swash plate swing angle)
3 Type-Fixed Motor
3 Design Series-Fixed Gap Series (MOEDLS 33 64)
21 Output shaft 21 teeth 16/32 pitch spline,( 58667017, 58647085,MODELS 33 54)
B Main port [1.00] 1 inch flange port CODE 62 PER SAE J518
B Rear cover and valve block-Standard rear cover with integrated valve block (with shuttle valve)
1 Charge pressure control valve-standard
B Charge pressure control valve pressure setting 11bar[160ibfi/n2]
1 A port high pressure relief valve-standard
K A port high pressure relief valve pressure setting 345 bar [5000ilf/in2]
1 B port high pressure relief valve-standard
K B port high pressure relief valve pressure setting 345 bar[5000ibf/in2]
0 Speed sensor-None
00 Special performance-None
0 Paint and packaging-spray blue primer (standard)
0 Machine identification-standard
B Design code -B
6433- 042 (mainly used in 10 12M3 concrete mixer truck)
Product Categories : Hydraulic Motor Series
Q1:Could you custom products?
We can manufacture it according to your drawings or samples.
Q2: I want to buy your products, how can I pay?
A :You can pay via T/T , WEST UNION or other payment terms we reach agreement.
Q3: How can you guarantee the quality?
A: One year's warranty against B/L date.
If You meet with quality problem, we promise to responsible for it.
Q4: If we don't find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q5: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
Q6: What is the lead time?
A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
Exact time is determined by factory schedule.
